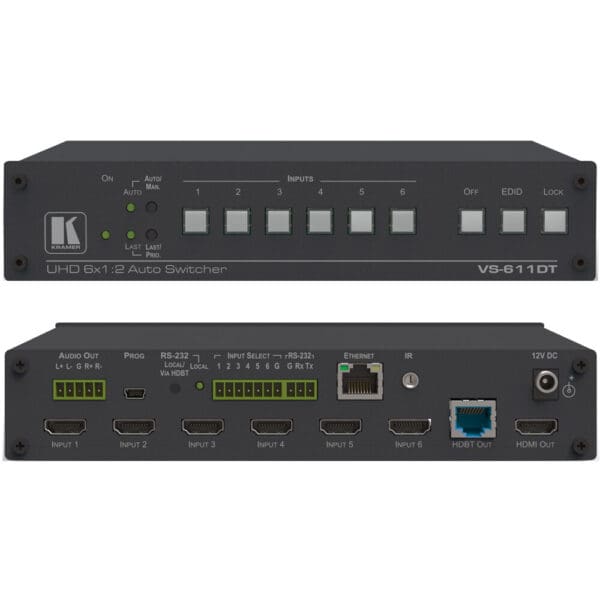

6×1:2 4K60 4:2:0 HDMI Auto Switcher and PoE Provider over HDBaseT

Description

VS-611DT is a high-performance automatic switcher for HDMI video signals with resolution up to 4K@60Hz (4:2:0). With six HDMI inputs, the unit can automatically or manually switch to a predefined or last connected input whenever the currently active video signal is interrupted or whenever a higher-priority video signal is introduced. The output signal is distributed to HDBaseT and HDMI 4K@60Hz (4:2:0) outputs.

• Max. Data Rate – 8.91Gbps (2.97Gbps per graphic channel).
• Max. Resolution – 4K@60Hz (4:2:0) and WUXGA.
• HDTV Compatible.
• HDCP Compliant – Works with sources that support HDCP repeater mode.
• HDMI Support – Deep Color, Ethernet, ARC, 7.1 PCM.
• Customized Audio Output – De-embed the audio from the HDMI input and route it to the balanced stereo audio line out, or de-embed HDMI ARC from the output and route it to the balanced stereo audio line out.
• Features Kramer reKlocking™ Technology – Rebuilds the digital signal to travel longer distances.
• Step-in Master Support.
• Auto-Power Off – When no HDMI input for 30 seconds (selectable).
• Automatic Input Detection & Selection.
• HDCP On/Off Switching.
• EDID Configuration Options.
• Selectable Switching – Manual or fast auto-switching according to last connected or preset priority.
• Full HDBaseT Certification – Including bidirectional RS-232, Ethernet, IR and POE.
• HDBaseT Extended Reach – Up to 100m at 4K@60Hz (4:2:0).
• POE Source for HDBaseT Receivers.
• Contact Closure – For remote manual switching override.
• Firmware Upgrade – Over mini-USB, RS-232 or RJ-45 Web page.
• Varied Control Options – Front panel keyboard, HDBaseT Ethernet, RS-232 local and over HDBaseT.
• Built-in Web Server.
• Software Support – For Protocol 3000, K-Router Plus, EDID Designer, K-Upload.

APPLICATIONS

• Mid-sized meeting/conference rooms
• Mid – to large-sized lecture rooms
