2×1:4 4K HDMI and HDBaseT Distribution Amplifier

Description

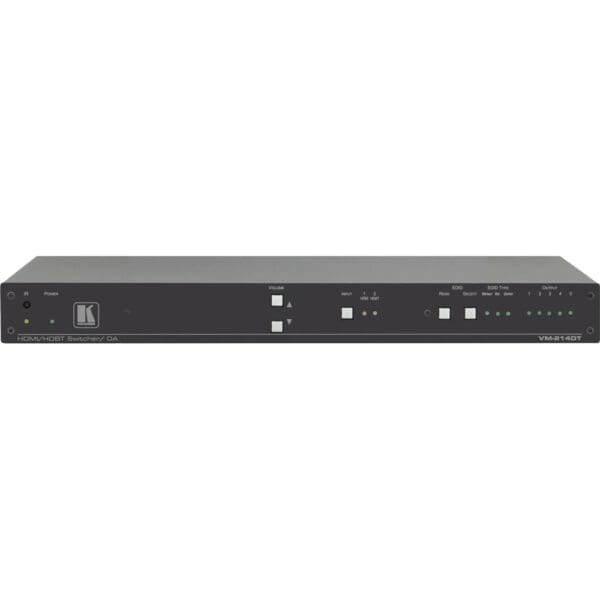

The VM-214DT is a 2×1:4 4K@60Hz (4:2:0) HDMI & extended-reach HDBaseT DA for HDMI & HDBaseT signals. It reclocks and equalizes the signal and distributes it to four identical HDBaseT outputs and a looping HDMI output. It supports resolutions up to 4K@60Hz (4:2:0). This product offers the versatility of control options and audio de-embedding.

• Max. Resolution – 4K@60Hz (4:2:0).
• Max. Data Rate – 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant – Works with sources that support HDCP repeater mode.
• HDMI Support – Deep Color, x.v.Color™ and 3D.
• Automatic Live Input Detection – Based on video clock presence.
• Automatic Analog Audio Detection & De-embedding.
• Looping HDMI Output – Allow monitoring and cascading to additional DAs.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ – Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
• System Range – Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to 180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC-UNIKAT cables.
• Data Equalization and Reclocking.
• Support for Digital Audio Formats.
• Lockable EDID and Default EDID – For fast and efficient connection of the unit.
• Support for EDID Designer.
