AT-UHD-EX-100CE-RX-PSE

Description

4K/UHD HDBaseT Receiver with Ethernet, Control and PoE

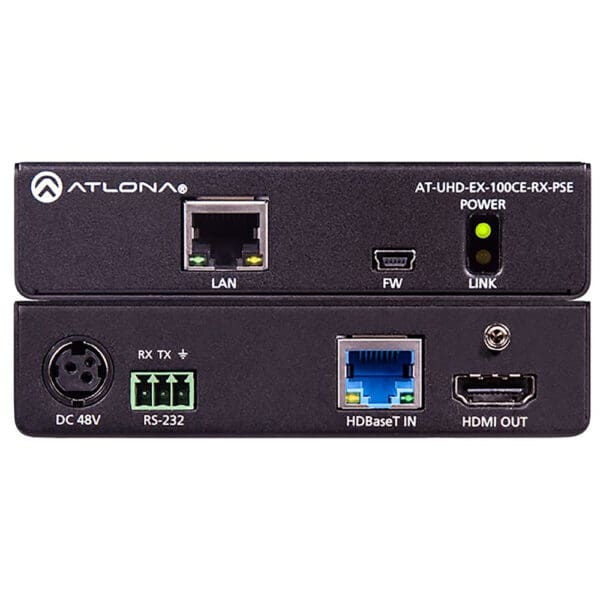

The Atlona AT-UHD-EX-100CE-RX-PSE is a 4K/UHD HDMI over 100M HDBaseT™ receiver for AV signals up to 330 feet (100 meters) over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It receives video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded multi-channel audio. The AT-UHD-EX-100CE-RX-PSE is HDCP 2.2 compliant and supports EDID communication. It is ideal for use with the AT-UHD-EX-100CE-TX-PD HDBaseT transmitter, or an HDVS-200 or HDVS-150 Series HDBaseT switcher for extending 4K signals to a display. This receiver features a quarter rack width metal enclosure, with rear panel I/O ports for uncluttered wire management. The AT-UHD-EX-100CE-RX-PSE is externally powered by the included power supply, and provides Power over Ethernet for the AT-UHD-EX-100CE-TX-PD, an HDVS-200 or HDVS-150 HDBaseT switcher, or other PoE-compatible HDBaseT transmitter.

Remotely Powers Transmitter and Supports 4K/UHD Video

The AT-UHD-EX-100CE-RX-PSE can be paired with the PoE-powered AT-UHD-EX-100CE-TX-PD transmitter for 4K/UHD transmission and HDCP 2.2 compliance. It also provides a value-oriented alternative to the AT-HDVS-200-RX or AT-HDVS-150-RX HDBaseT scaling receiver, when 4K signals need to be passed to a display and a scaler is not needed.

Applications

This receiver is ideal for use in point-to-point HDBaseT extension applications where:

• 4K/UHD signal capability is required as part of the system design
• The HDBaseT transmitter will be at a lectern, conference table, or wall location where AC power may be unavailable or expensive to provide
