BG-UHD-KVM21A

Description

The BG-UHD-KVM21A is a 4K HDMI USB 2.0 KVM switch. With support for resolutions up to?4K@30Hz, this device allows users to control two computers and share USB peripherals from a single workstation. Perfect for offices, software programmers, and technical support desks, users can easily switch between multiple operating systems without leaving their seat.

Connectivity and Features

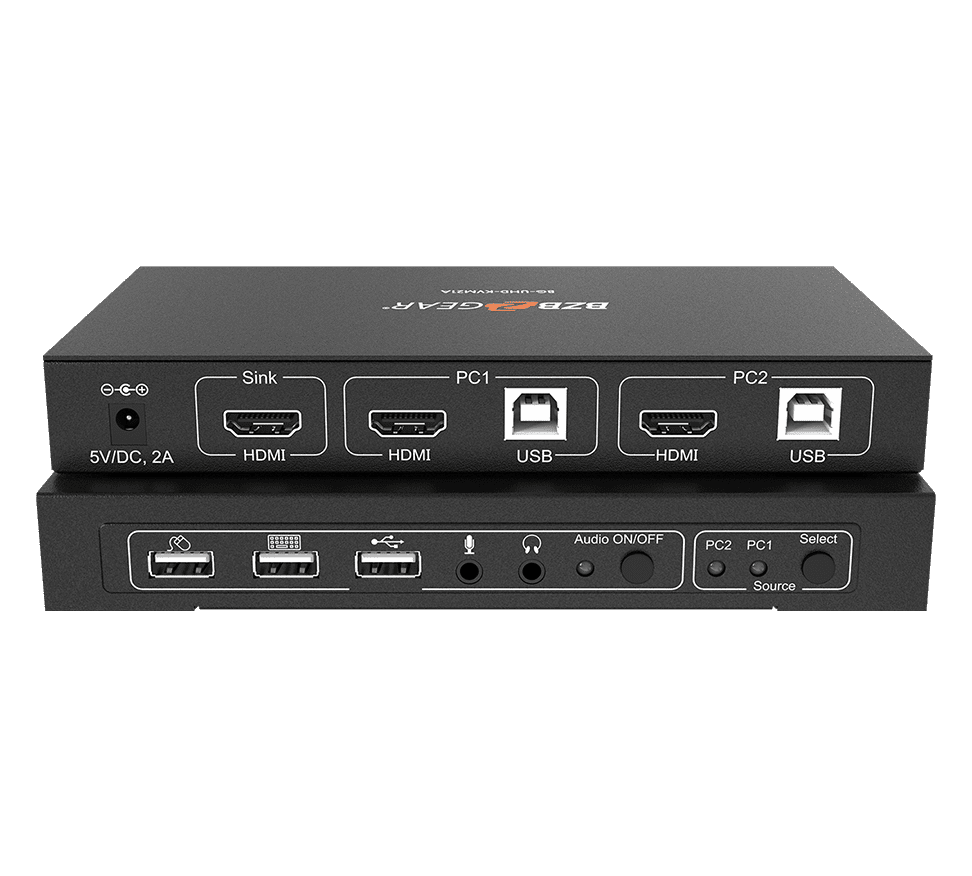

The rear panel of the BG-UHD-KVM21A is equipped with two PC connections, each including one USB 2.0 type-B host port and one HDMI 1.4 input. There is also one HDMI 1.4 output for connection to a monitor. On the front panel, there are three USB 2.0 ports for a keyboard, mouse, and a spare port for additional devices. The BG-UHD-KVM21A also provides 3.5mm audio connections for a microphone and headphones/speakers.

Control

The BG-UHD-KVM21A is simple to operate using the front panel buttons. The source select button toggles between the two connected computers, switching the HDMI and peripheral connections. It can also be operated using hotkeys. There is also an audio toggle which enables/disables the audio in/out connections.
