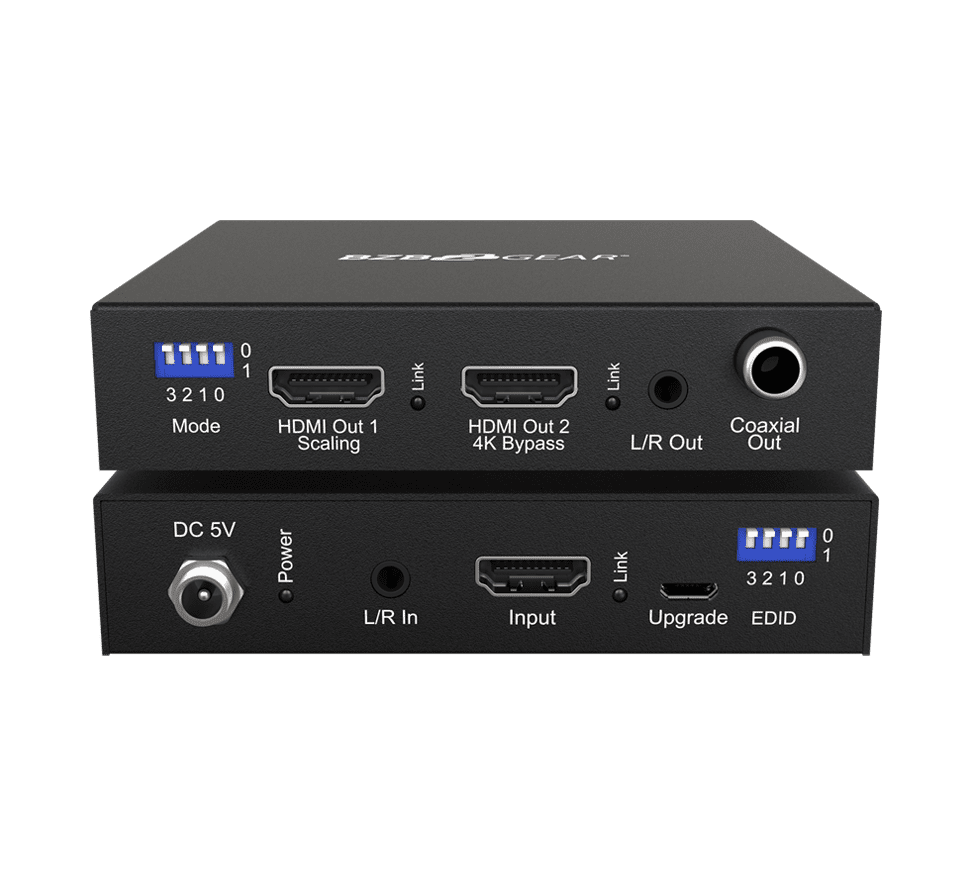

1X2 4K UHD HDMI Splitter/Scaler with Analog Audio Embedder & Digital Audio De-embedder

Description

The BG-UHD-SC1X2 is a 4K 18Gbps HDMI Splitter with built-in Scaler, specifically designed for installations requiring a single 4K video source to be distributed to multiple displays that have video resolution limits. The BG-UHD-SC1X2 supports down-scaling of 4K video to a fixed resolution of 1080p or to a lower color gamut if the screen does not support 4K (4:4:4) using the HDMI Scaler Port. It also offers audio Embedding and De-embedding, advanced EDID management and is HDCP 2.2 compliant.

HDMI output 1 supports to down-scale the video to the following formats:
– 1080P@24/25/30/60Hz (for screens that do not support 4K)
– 4K@50/60Hz 4:2:0 (for screens that do not support full 4K@60Hz 4:4:4)

Features

• HDMI Scaling 1x HDMI Input and 2 HDMI Outputs
• Stunning Image Quality 4K pass-through supports 4K@60Hz 4:4:4
• Audio Embed & De-embed Embed audio using 3.5mm stereo or de-embed using 3.5mm stereo or S/PDIF digital Coaxial
• Autoscaling Scale a 4K signal to 1080P automatically
• Locking Power Locking power connection to ensure device stays plugged in
• Rugged Design Durable metal enclosure built to last for years

• Advanced EDID management
• HDCP 2.2 compliant
• Slim design
